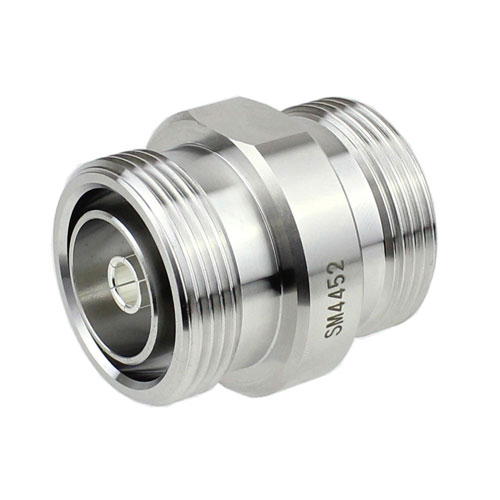

7/16 DIN Female (Jack) to 7/16 DIN Female (Jack) Adapter IP67 UnMated, Tri-Metal Plated Brass Body, 1.25 VSWR

7/16 DIN Female (Jack) to 7/16 DIN Female (Jack) Adapter IP67 UnMated, Tri-Metal Plated Brass Body, 1.25 VSWR

The standard 7/16 DIN adapter SM4452 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 7/16 DIN to Threaded none 7/16 DIN RF ada...

The standard 7/16 DIN adapter SM4452 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 7/16 DIN to Threaded none 7/16 DIN RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1.This none 7/16 DIN to none 7/16 DIN adapter is constructed with female gender on side 1 and female gender on side 2. The none none 7/16 DIN female to 7/16 DIN female coaxial adapter from Fairview Microwave has a straight body style. This straight7/16 DINadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4452 adapter has a length of 1.47 inches, a width of 1.35 inches, and a weight of 0.31 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 6 GHz. This 7/16 DIN female to 7/16 DIN female radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave SM4452 coaxial RF adapter operates at temperatures ranging from -45 to 120 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 7/16 DIN female to 7/16 DIN female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 7/16 DIN coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM4452 SM4452 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

7/16 DIN

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Tri-Metal

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
