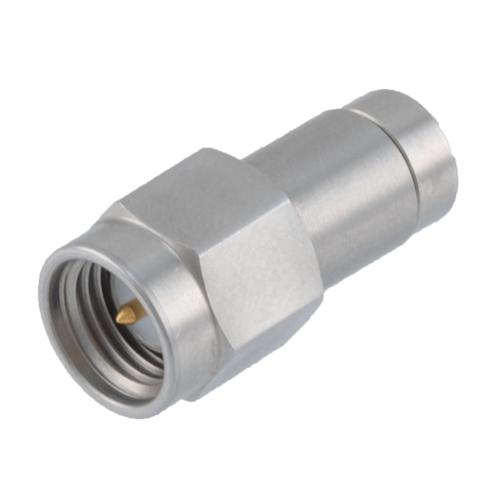

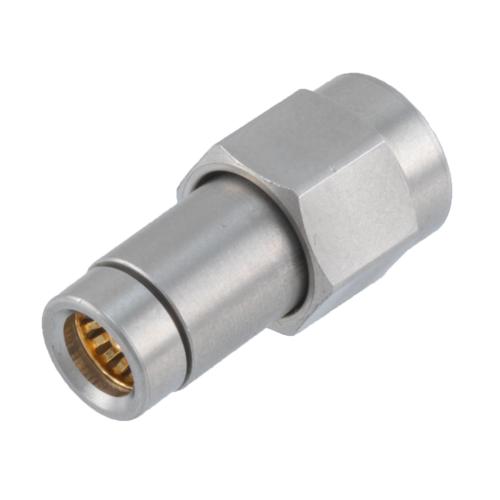

BMMA Female (Jack) to SMA Male (Plug) Adapter with Passivated Stainless Steel Body

BMMA Female (Jack) to SMA Male (Plug) Adapter with Passivated Stainless Steel Body

The BMMA to SMA adapter FMAD10004 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our BMMA to SMA RF adapter comes with a 50 Ohm impedance. This adap...

The BMMA to SMA adapter FMAD10004 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our BMMA to SMA RF adapter comes with a 50 Ohm impedance. This adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.3:1. This radio frequency adapter has a maximum insertion loss of 0.424 dB. This BMMA to SMA adapter is constructed with the female gender on side 1 and the male gender on side 2. The BMMA female to SMA male coaxial adapter from Fairview Microwave has a straight body style. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD10004 adapter has a length of 0.69 inches, a width of 0.35 inches, and a weight of 0.2 lbs. Our RF adapter operates at a maximum frequency of 18 GHz. This BMMA female to SMA male radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave FMAD10004 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above. Fairview Microwave’s BMMA female to SMA male adapter is part of over one million RF, microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build BMMA to SMA coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD10004 FMAD10004 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

BMMA

Connector Gender 1

Female

Connector Impedance 1

50 Ohm

Connector Series 2

SMA

Connector Gender 2

Male

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Straight

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bmma-male-to-sma-male-adapter-with-passivated-stainless-steel-body-fmad10005 Fairview Microwave FMAD10005

20 available

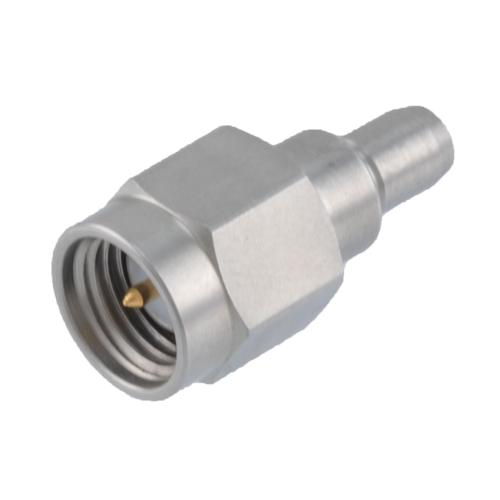

BMMA Male (Plug) to SMA Male (Plug) Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD10005

Starting price $101.99

Estimated shipment Next Business Day

bmma-male-to-sma-female-bulkhead-adapter-with-passivated-stainless-steel-body-fmad10003 Fairview Microwave FMAD10003

18 available

BMMA Male (Plug) to SMA Female (Jack) Bulkhead Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD10003

Starting price $117.99

Estimated shipment Next Business Day

bmma-female-to-sma-female-adapter-with-passivated-stainless-steel-body-fmad10006 Fairview Microwave FMAD10006

17 available

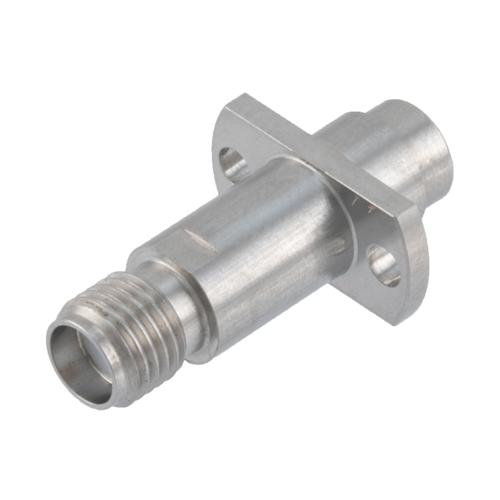

BMMA Female (Jack) to SMA Female (Jack) 2 Hole Flange Mount Adapter, 0.434 inch Hole Spacing with Passivated Stainless Steel Body
