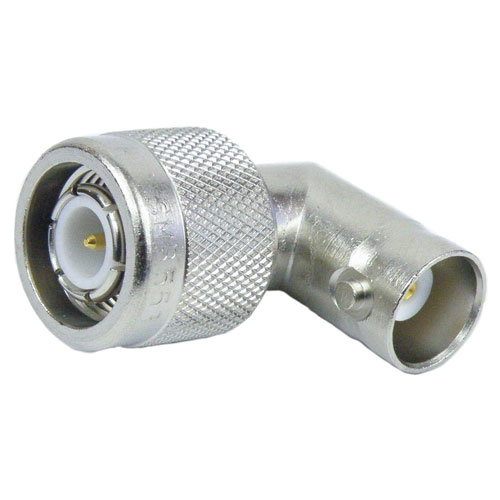

RA TNC Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp, 1.25 VSWR

RA TNC Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp, 1.25 VSWR

The TNC to BNC standard adapter SM3553 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to Bayonet none BNC RF adapter come...

The TNC to BNC standard adapter SM3553 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to Bayonet none BNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. Our standard RF adapter has a dielectric withstanding voltage of 1,500 Vrms.This none TNC to none BNC adapter is constructed with male gender on side 1 and female gender on side 2. The none none TNC male to BNC female coaxial adapter from Fairview Microwave has a right angle body style. This right angleTNC connector adapter is a 90 degree right angle RF adapter. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3553 adapter has a length of 1.04 inches, a width of 0.8 inches, and a weight of 0.05 lbs.Our between series connection type RF adapter operates at a maximum frequency of 4 GHz. This TNC male to BNC female radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM3553 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC male to BNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3553 SM3553 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

BNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

4 GHz

Adapter Body Style

Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

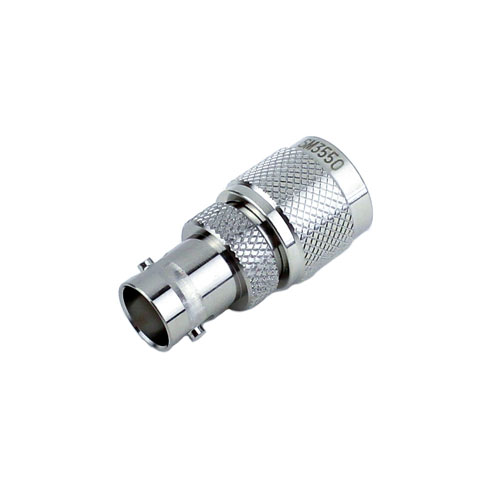

tnc-male-bnc-female-adapter-sm3550 Fairview Microwave SM3550

34 available

TNC Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR

Compare

SKU SM3550

Starting price $67.99

Estimated shipment Next Business Day

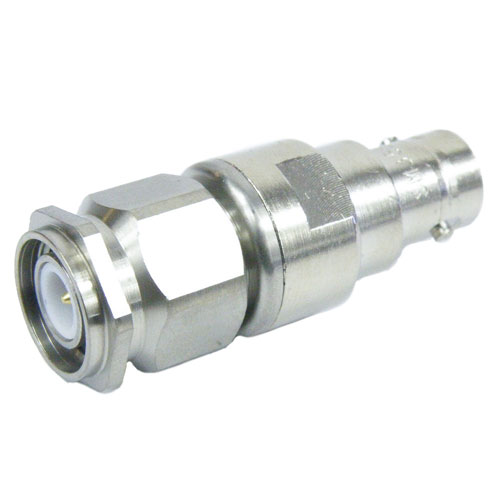

tnc-male-bnc-female-adapter-sm3552 Fairview Microwave SM3552

Call us

TNC Male (Plug) to BNC Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.25 VSWR

Compare

SKU SM3552

Starting price $34.06

Estimated shipment Call Us

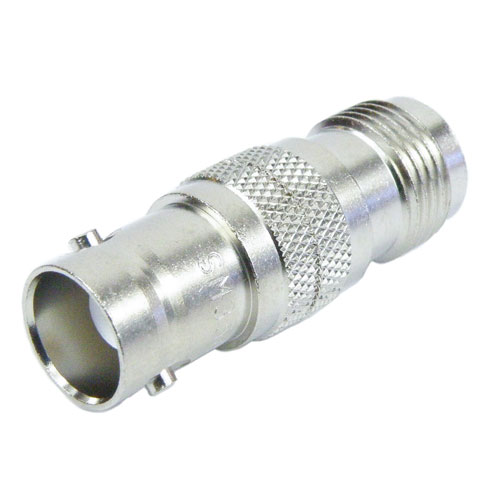

tnc-female-bnc-female-adapter-sm3546 Fairview Microwave SM3546
