TNC T Adapter Female (Jack)-Female (Jack)-Female (Jack), Nickel Plated Brass Body, High Temp

TNC T Adapter Female (Jack)-Female (Jack)-Female (Jack), Nickel Plated Brass Body, High Temp

Name: TNC T Adapter Female (Jack)-Female (Jack)-Female (Jack), Nickel Plated Brass Body, High Temp
Brand: Fairview Microwave, Inc.
SKU: SM5747
Price: 30.99 USD
Availability: InStock

The standard TNC adapter SM5747 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to Threaded none TNC RF adapter comes with...

The standard TNC adapter SM5747 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to Threaded none TNC RF adapter comes with a 50 Ohm impedance. Our standard RF adapter has a dielectric withstanding voltage of 1,500 Vrms.This none TNC to none TNC adapter is constructed with female gender on side 1 and female gender on side 2. The none none TNC female to TNC female coaxial adapter from Fairview Microwave has a tee body style. This teeTNCadapter is also known as a TNC T connector. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM5747 adapter has a length of 1.28 inches, a width of 0.89 inches, and a weight of 0.04 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 6 GHz. This TNC female to TNC female radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM5747 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC female to TNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM5747 SM5747 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Connector Series 3

TNC

Connector Gender 3

Female

Connector Impedance 3

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Tee

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Connector Body Material 3

Brass

Connector Body Plating 3

Nickel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

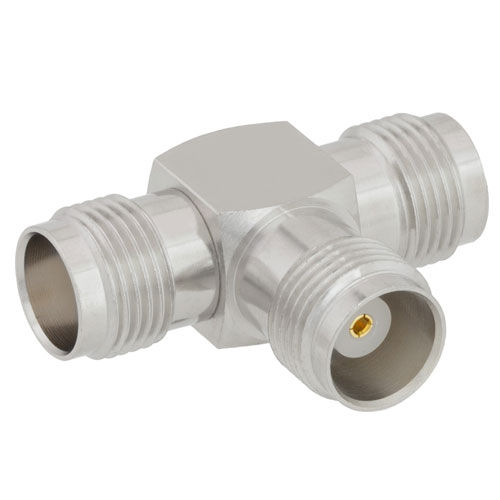

tnc-female-female-female-tee-adapter-fmad1153 Fairview Microwave FMAD1153

3 available
