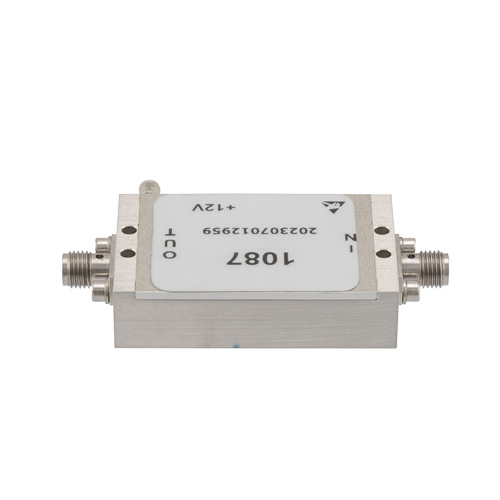

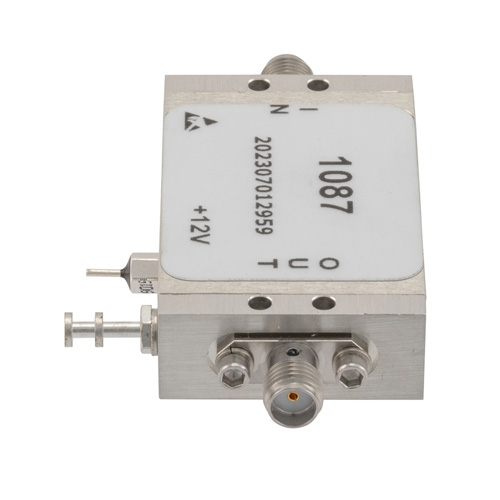

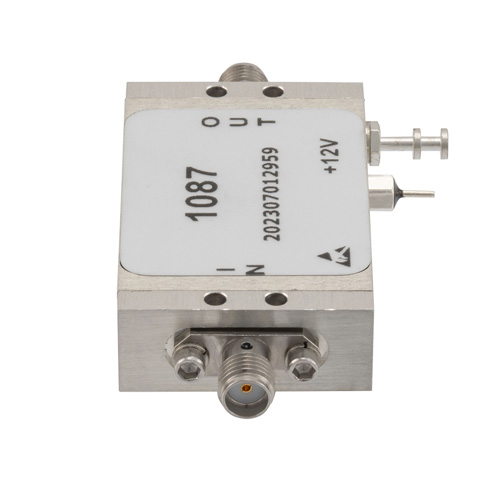

2.0 dB NF Low Noise Amplifier, Operating from 20 MHz to 6 GHz with 59 dB Gain, 18 dBm P1dB and SMA

2.0 dB NF Low Noise Amplifier, Operating from 20 MHz to 6 GHz with 59 dB Gain, 18 dBm P1dB and SMA

RF low noise amplifier FMAM1087 from Fairview Microwave is just one amplifier of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid ship...

RF low noise amplifier FMAM1087 from Fairview Microwave is just one amplifier of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid shipment. Fairview Microwave’s DC powered RF low noise amplifier (LNA) is a connectorized version manufactured with SMA connectors. This low noise amplifier has a female gender configuration for input and output ports. Our DC powered SMA low noise amplifier design has 59 dB typical gain with a gain flatness of 2 dB and a low noise figure of 2 dB. The FMAM1087 DC powered low noise amplifier has a typical VSWR (Voltage Standing Wave ratio) of 1.5:1.Fairview Microwave’s DC powered low noise amplifier part number FMAM1087 has a 50 Ohm impedance and a 18 dBm typical 1dB compression power. Our radio frequency DC powered low noise amplifier is constructed for a minimum frequency of 20 MHz and a maximum frequency of 6 GHz. The low noise amplifier operates over a temperature range of -40 deg C and 85 deg C.This SMA AC powered low noise amplifier is ideal for aerospace & defense, test & measurement, microwave radio systems, military & commercial communication systems, research & development, satcom, wireles applications. The Fairview Microwave low noise amplifier requires 12 Vdc typical with 250 mA DC current. The FMAM1087 amplifier has a maximum input power of 20 dBm. Additional specs for this low noise amplifier can be found on its PDF specification datasheet and CAD drawings above.The radio frequency DC powered low noise amplifier is one of the thousands of RF products available from Fairview Microwave’s in-stock inventory. Urgency is in our DNA so make your online purchase right now to take advantage of our same day shipment for local, domestic, and international orders. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect DC powered low noise amplifier for your requirement.

Expand

SKU FMAM1087 FMAM1087 -0

QTY available Call us

Price $1,680.00

Quantity Price

1-4$1,680.00

5-9$1,612.80

10-24$1,545.60

25-99$1,478.40

100-249$1,411.20

250+$1,411.20Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Key specifications

Datasheet

View All

Gain

59 dB

1 dB Compression Power

17 dBm

Frequency, Min

20 MHz

Frequency, Max

6 GHz

Noise Figure, Typ

2 dB

Design

Low Noise

Voltage, DC Max

15 Volts

Current, DC Max

300 mA

Connector Series

SMA

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
