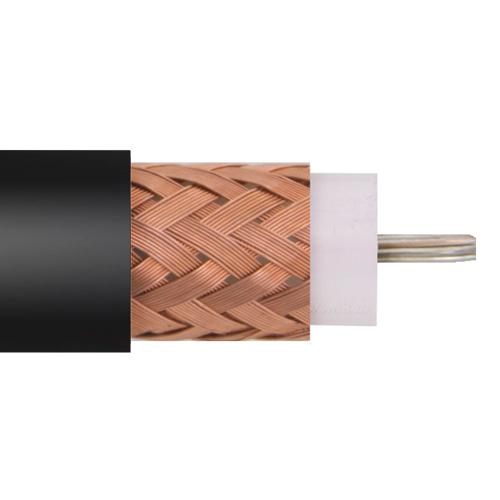

75 Ohm Flexible RG11 Coax Cable Single Shielded with Black PVC Jacket

75 Ohm Flexible RG11 Coax Cable Single Shielded with Black PVC Jacket

RG11 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG11A/U-BULK co...

RG11 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG11A/U-BULK coaxial cable is manufactured in a flexible design and has a 75 Ohm impedance. This flexible 75 Ohm coaxial cable is constructed with a PVC jacket of 0.405-inch diameter. Fairview Microwave’s RG11A/U-BULK flexible coaxial cable with a PVC jacket is rated for a 1 GHz maximum operating frequency. This 75 Ohm flexible coaxial cable is built with a shield count of 1 and RF shielding of 45 dB. Our RF coaxial cable with a stranded conductor of tin-plated copper can withstand the maximum power of 150 Watts at 1 GHz. Our black-colored coaxial RF cable has a typical insertion loss/attenuation of 1.98, 2.93, 4.42, 6.93 and 8.11 dB/100ft at frequency of 100 MHz, 200 MHz, 400 MHz, 800 MHz and 1 GHz respectively. The RG11coaxial cable with PE dielectric can operate at temperatures ranging from -40 to +80 degrees C. Additional specifications for this RG11A/U-BULK single shielded RF coaxial cable are on our downloadable PDF datasheet above. Our blackflexible RF cable with 75 Ohm impedance has 8.11 dB/100ft of attenuation at 1 GHz. This black colored high voltage coaxial cable has a 0.314-inch shield layer of copper braid. This RF cable has a repeat minimum bend radius of 4.5 inch. RG11 RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This RG11 coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU RG11A/U-BULK RG11A/U-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

RG11

Flex Type

Flexible

Impedance

75 Ohm

Dielectric Type

PE

Velocity of Propagation

66 %

Jacket Diameter

0.405 in

Jacket Material

PVC

No. of Shields

1

Attenuation at 1 Ghz.

8.11 dB

Power, Max at 1 Ghz.

150 Watts

RF Shielding

45 dB

Frequency, Max

1 GHz

Max Operating Temperature

80 deg C

Center Conductor Type

Stranded

Inner Conductor, Number of Strands

7

Minimum Bend Radius, Repeated

4.5 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

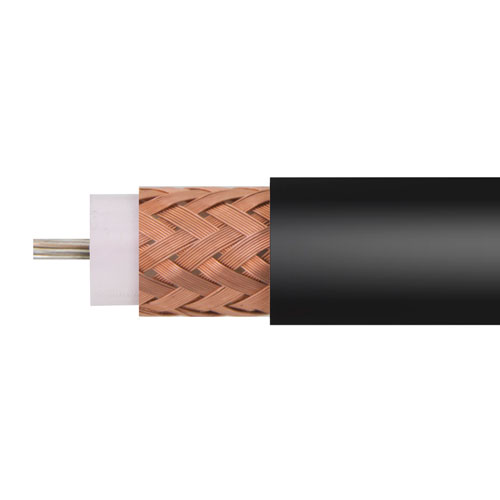

75-ohm-rg11au-flexible-coax-cable-pvc-jacket-rg11a-u Fairview Microwave RG11A/U
