RA 75 Ohm 12G SDI 1.0/2.3 Female Bulkhead PCB Connector Thru Hole Solder Attachment

RA 75 Ohm 12G SDI 1.0/2.3 Female Bulkhead PCB Connector Thru Hole Solder Attachment

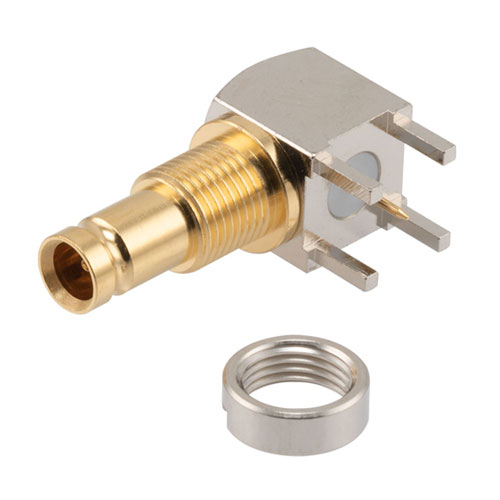

FMCN0018 RA 1.0/2.3 female bulkhead PCB connector from Fairview Microwave has an interface type of thru hole and a 75 Ohm impedance. This 1.0/2.3 female bulkhead connector uses shield attachment of so...

FMCN0018 RA 1.0/2.3 female bulkhead PCB connector from Fairview Microwave has an interface type of thru hole and a 75 Ohm impedance. This 1.0/2.3 female bulkhead connector uses shield attachment of solder attachment for the contact. Our female 1.0/2.3 right angle PCB connector provides a minimum frequency of DC and a maximum frequency of 12 GHz.Right angle 1.0/2.3 female bulkhead PCB RF connector has a PTFE dielectric type and a VSWR of . This Fairview Microwave 1.0/2.3 PCB connector has a brass body with nickel plating. Our FMCN0018 1.0/2.3 RA connector uses brass contact and a nickel plating material. you can find this 1.0/2.3 female right angle bulkhead PCB connector datasheet specifications above.Fairview Microwave RA female 1.0/2.3 bulkhead connector purchases will ship the same day. Our bulkhead 1.0/2.3 right angle female thru hole connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom 1.0/2.3 cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN0018 FMCN0018 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

1.0/2.3

Connector Gender

Female

Impedance

75 Ohm

Body Style

Right Angle

Attachment Method

Solder

Mount Method

Bulkhead

Minimum Frequency

DC

Maximum Frequency

12 GHz

Termination Type

PCB

Interface Type 1

Thru Hole

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
