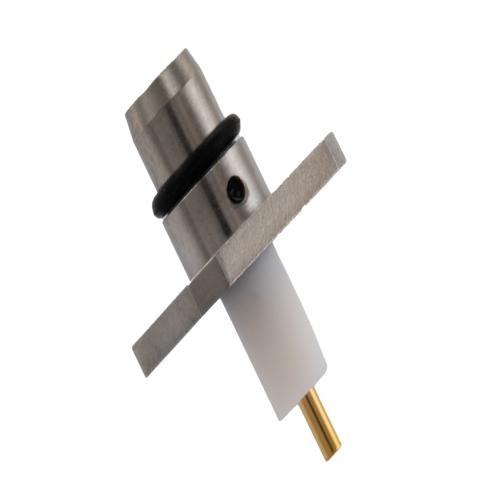

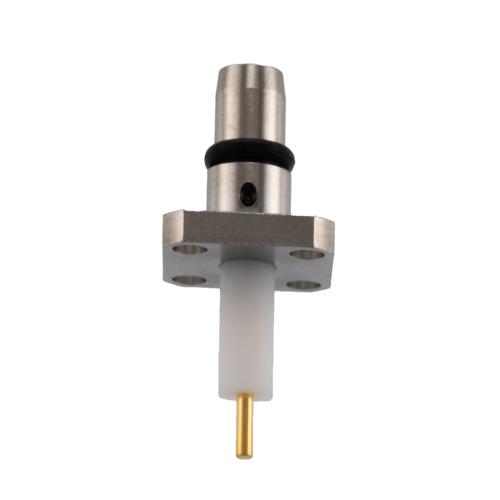

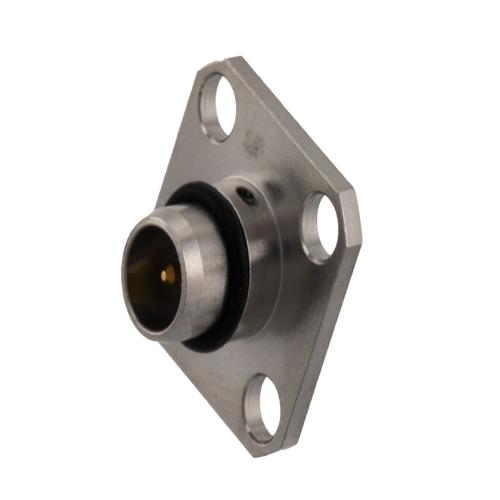

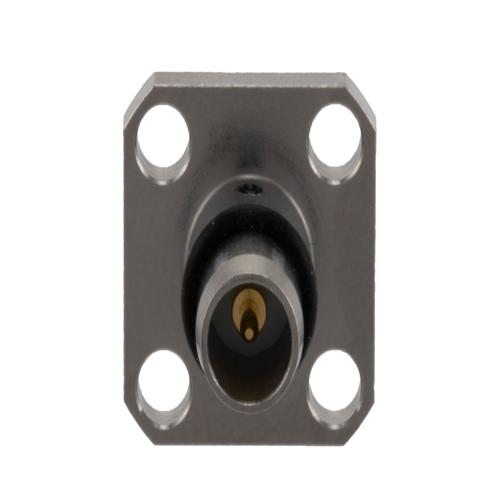

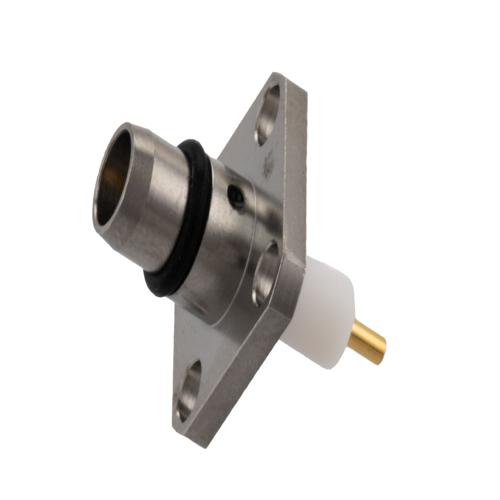

BMA Plug (Male) Connector Terminal Attachment 4 Hole Flange

BMA Plug (Male) Connector Terminal Attachment 4 Hole Flange

FMCN5162 BMA plug 4 hole flange terminal standard RF connector and has an impedance of 50 Ohm. Our plug BMA terminal connector operates at a maximum frequency of 22 GHz. This BMA plug RF connector is ...

FMCN5162 BMA plug 4 hole flange terminal standard RF connector and has an impedance of 50 Ohm. Our plug BMA terminal connector operates at a maximum frequency of 22 GHz. This BMA plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave BMA plug 4 hole flange terminal connector has a PTFE dielectric type and a VSWR of 1.3:1. Fairview Microwave's BMA terminal connector has a passivated stainless steel body. Our FMCN5162 connector uses beryllium copper contact. This RF connector can operate at temperatures ranging from -40 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 2 mOhms and 2 mOhms respectively. Our BMA plug RF connector with terminal termination has a 0.14 dB maximum insertion loss. This BMA connector has a gold over nickel over copper inner contact plating. Fairview Microwave’s standard BMA plug connector has a maximum operating voltage of 1,000 Vrms and a dielectric withstanding voltage of 1,500 Vrms. Our terminal RF connector has a length of 0.778 inches, a width of 0.5 inches, and a weight of 0.0062 lbs. This connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA plug terminal connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5162 FMCN5162 -0

QTY available 20

Price $31.39

Quantity Price

1-4$31.39

5-9$30.76

10-24$30.13

25-99$29.51

100-249$28.88

250+$28.88Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BMA

Connector Gender

Plug

Impedance

50 Ohm

Body Style

Straight

Mount Method

4 Hole Flange

Minimum Frequency

DC

Maximum Frequency

22 GHz

Termination Type

Terminal

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

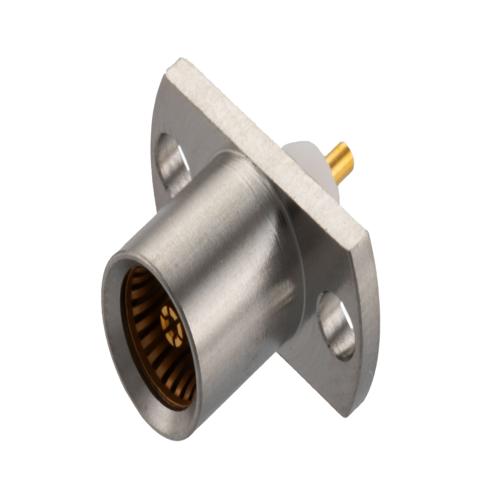

bma-jack-terminal-connector-fmcn5161 Fairview Microwave FMCN5161

8 available

BMA Jack (Female) Connector Terminal Attachment 2 Hole Flange

Compare

SKU FMCN5161

Starting price $73.99

Estimated shipment Today

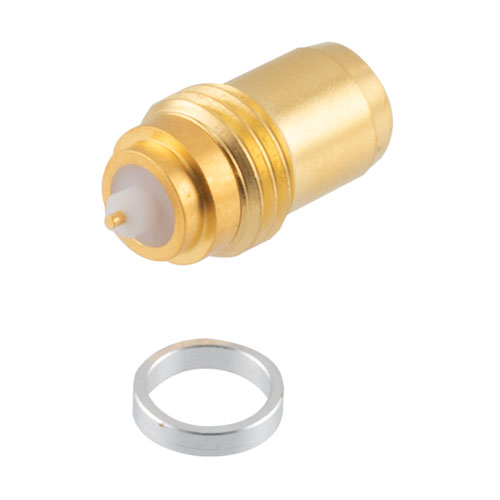

bma-male-slide-on-terminal-connector-fmcn5242 Fairview Microwave FMCN5242

25 available

BMA Male (Plug) Connector, Slide-On Hermetically Sealed, Commercial Grade

Compare

SKU FMCN5242

Starting price $76.99

Estimated shipment Today

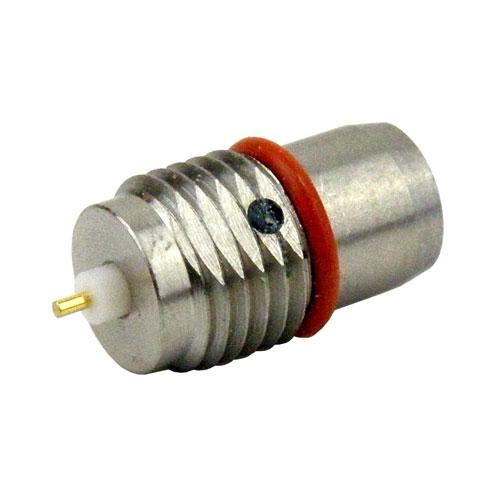

bma-plug-standard-stub-terminal-connector-sc4715 Fairview Microwave SC4715

Call us

BMA Plug (Male) Bulkhead Connector Stub Terminal, Solder

Compare

SKU SC4715

Starting price

Estimated shipment Call Us

bma-plug-slide-on-stub-terminal-connector-fmcn1224 Fairview Microwave FMCN1224

1 available

BMA Plug (Male) Slide-On Connector Stub Terminal 4 Hole Flange (Panel Mount), Solder, .340 inch Hole Spacing

Compare

SKU FMCN1224

Starting price $16.05

Estimated shipment Today
