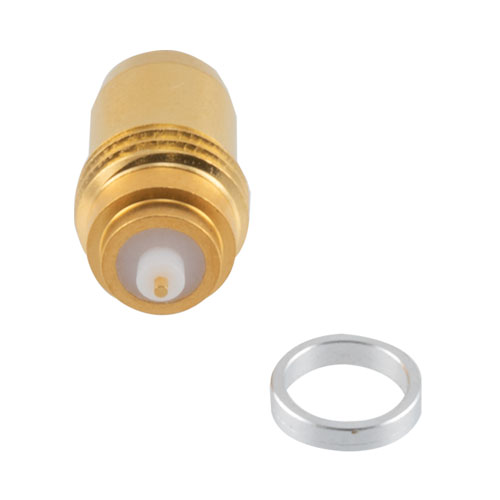

BMA Male (Plug) Connector, Slide-On Hermetically Sealed, Commercial Grade

BMA Male (Plug) Connector, Slide-On Hermetically Sealed, Commercial Grade

FMCN5242 BMA male thread-in hermetically sealed terminal slide-on RF connector and has an impedance of 50 Ohm. Fairview Microwave’s BMA male thread-in connector uses none as an attachment method. Our ...

FMCN5242 BMA male thread-in hermetically sealed terminal slide-on RF connector and has an impedance of 50 Ohm. Fairview Microwave’s BMA male thread-in connector uses none as an attachment method. Our male BMA terminal connector operates at a maximum frequency of 22 GHz. This BMA male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave BMA male (plug) thread-in hermetically sealed terminal slide-on connector has a PTFE dielectric type and a VSWR of 1.3:1. Fairview Microwave’s BMA terminal connector has a stainless steel body with gold plating. Our FMCN5242 connector uses beryllium copper contact. This RF connector can operate at temperatures ranging from -65 to +125 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Our BMA male RF connector with terminal termination has a 0.32 dB maximum insertion loss. The radio frequency connector is made from stainless steel along with a contact life of 1000 cycles or more. This BMA connector has a gold inner contact plating. Fairview Microwave’s BMA male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. Our terminal RF connector has a length of 0.47 inches, a width of 0.25 inches, and a weight of 0.25 lbs. This connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA male terminal slide-on connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5242 FMCN5242 -0

QTY available 25

Price $76.99

Quantity Price

1-4$76.99

5-9$75.45

10-24$73.91

25-99$72.37

100-249$70.83

250+$70.83Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BMA

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

None

Mount Method

Thread-In

Minimum Frequency

DC

Maximum Frequency

22 GHz

Termination Type

Terminal

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bma-plug-terminal-connector-fmcn5162 Fairview Microwave FMCN5162

20 available

BMA Plug (Male) Connector Terminal Attachment 4 Hole Flange

Compare

SKU FMCN5162

Starting price $31.39

Estimated shipment Today

bma-plug-slide-on-connector-fmcn1237 Fairview Microwave FMCN1237

Call us

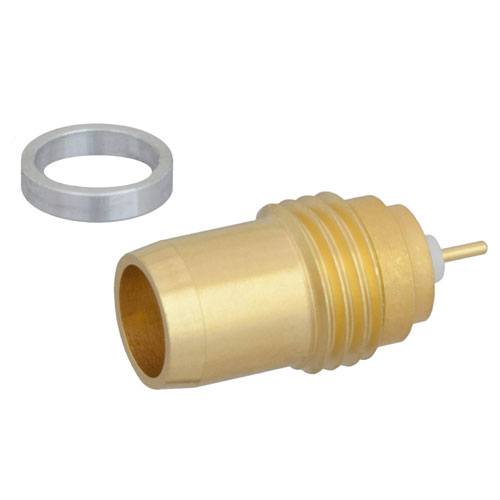

BMA Plug (Male) Slide-On Hermetically Sealed Thread-In With Extended Contact

Compare

SKU FMCN1237

Starting price $98.99

Estimated shipment Call Us

bma-plug-slide-on-connector-fmcn1236 Fairview Microwave FMCN1236

Call us

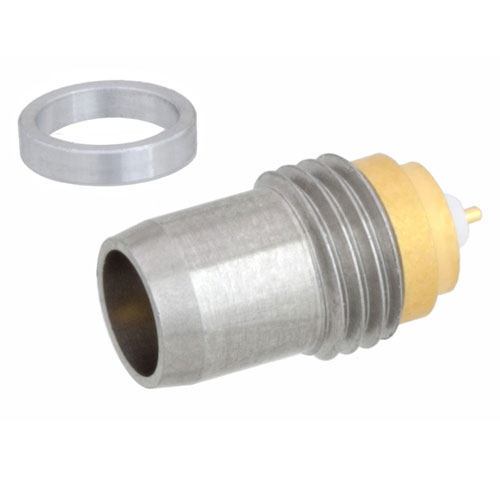

BMA Plug (Male) Slide-On Hermetically Sealed Thread-In

Compare

SKU FMCN1236

Starting price $90.99

Estimated shipment Call Us

bma-plug-slide-on-connector-fmcn1235 Fairview Microwave FMCN1235

3 available

BMA Plug (Male) Slide-On Hermetically Sealed Thread-In Gold Plated

Compare

SKU FMCN1235

Starting price $137.99

Estimated shipment Today
