M39012/22-0001 BNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder

M39012/22-0001 BNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder

Name: M39012/22-0001 BNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder
Brand: Fairview Microwave, Inc.
SKU: M39012/22-0001
Price: 143.99 USD
Availability: InStock

M39012/22-0001 BNC female 4 hole flange terminal connector from Fairview Microwave has an interface type of solder cup and a 50 Ohm impedance. This BNC female 4 hole flange connector uses shield attac...

M39012/22-0001 BNC female 4 hole flange terminal connector from Fairview Microwave has an interface type of solder cup and a 50 Ohm impedance. This BNC female 4 hole flange connector uses shield attachment of solder attachment for the contact. Our female BNC terminal connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.BNC female 4 hole flange terminal RF connector has a ptfe dielectric type and a VSWR of 1.25:1. This Fairview Microwave BNC terminal connector has a brass body with silver plating. Our M39012/22-0001 BNC connector uses beryllium copper contact and a silver plating material. This BNC female 4 hole flange terminal RF connector is RoHS compliant, you can find this BNC female 4 hole flange terminal connector datasheet specifications above.Fairview Microwave female BNC 4 hole flange connector purchases will ship the same day. Our 4 hole flange BNC female solder cup connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom BNC cable connector assemblies that will ship quickly from our location.

Expand

SKU M39012/22-0001 M39012/22-0001 -0

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BNC

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

4 Hole Flange

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

Terminal

Interface Type 1

Solder Cup

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bnc-female-standard-stub-terminal-connector-sc6231 Fairview Microwave SC6231

280 available

BNC Female (Jack) Connector Stub Terminal 4 Hole Flange (Panel Mount), Solder

Compare

SKU SC6231

Starting price $44.19

Estimated shipment Today

n-female-standard-solder-cup-terminal-connector-m39012-04-0002 Fairview Microwave M39012/04-0002

Call us

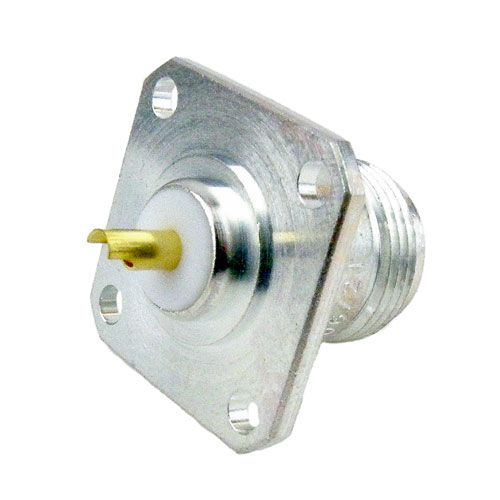

M39012/04-0002 N Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder

Compare

SKU M39012/04-0002

Starting price $16.79

Estimated shipment Call Us

sma-female-solder-cup-terminal-connector-fmcn4405 Fairview Microwave FMCN4405

34 available

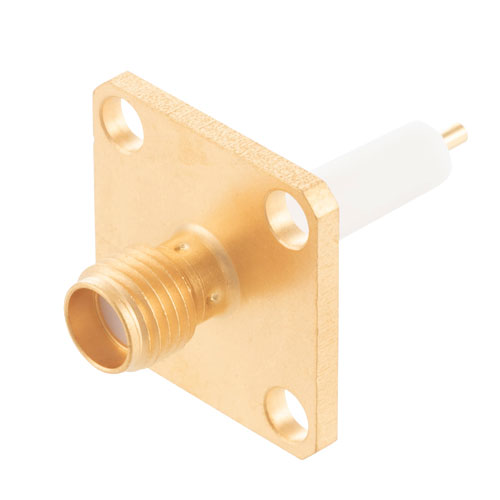

SMA Female Connector Solder Cup Terminal Solder Attachment 4 Hole Flange , .500 inch Hole Spacing

Compare

SKU FMCN4405

Starting price $41.39

Estimated shipment Today

sma-female-solder-cup-terminal-connector-sc7505 Fairview Microwave SC7505

102 available

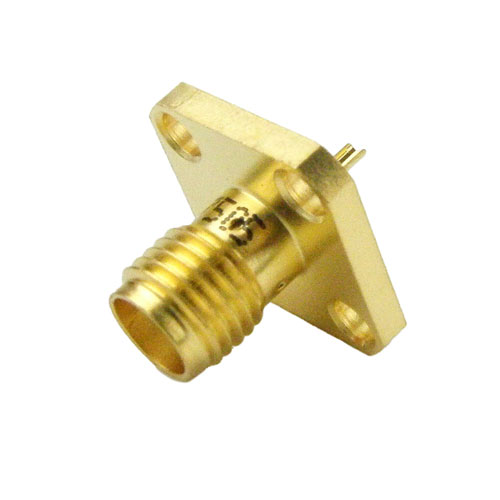

SMA Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder
