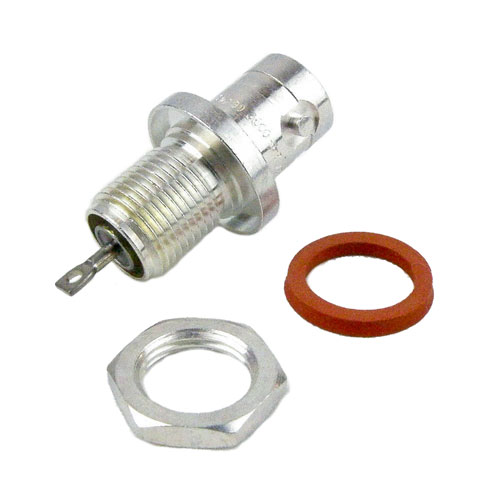

M39012/24-0002 BNC Female (Jack) Bulkhead Connector Turret Terminal, Solder

M39012/24-0002 BNC Female (Jack) Bulkhead Connector Turret Terminal, Solder

Name: M39012/24-0002 BNC Female (Jack) Bulkhead Connector Turret Terminal, Solder
Brand: Fairview Microwave, Inc.
SKU: M39012/24-0002
Price: 59.99 USD
Availability: OutOfStock

M39012/24-0002 BNC female bulkhead terminal connector from Fairview Microwave has an interface type of turret and a 50 Ohm impedance. This BNC female bulkhead connector uses shield attachment of solde...

M39012/24-0002 BNC female bulkhead terminal connector from Fairview Microwave has an interface type of turret and a 50 Ohm impedance. This BNC female bulkhead connector uses shield attachment of solder attachment for the contact. Our female BNC terminal connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.BNC female bulkhead terminal RF connector has a ptfe dielectric type and a VSWR of 1.25:1. This Fairview Microwave BNC terminal connector has a brass body with silver plating. Our M39012/24-0002 BNC connector uses beryllium copper contact and a silver plating material. This BNC female bulkhead terminal RF connector is RoHS compliant, you can find this BNC female bulkhead terminal connector datasheet specifications above.Fairview Microwave female BNC bulkhead connector purchases will ship the same day. Our bulkhead BNC female turret connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom BNC cable connector assemblies that will ship quickly from our location.

Expand

SKU M39012/24-0002 M39012/24-0002 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BNC

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

Bulkhead

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

Terminal

Interface Type 1

Turret

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

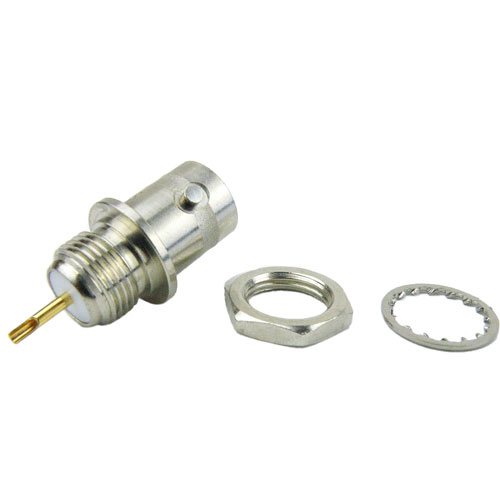

bnc-female-standard-solder-cup-terminal-connector-sc6263 Fairview Microwave SC6263

973 available

75 Ohm BNC Female (Jack) Bulkhead Connector Cup Terminal Solder, Solder

Compare

SKU SC6263

Starting price $21.19

Estimated shipment Tomorrow

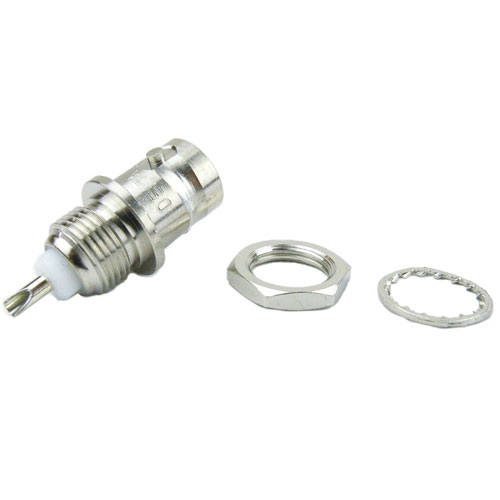

bnc-female-standard-solder-cup-terminal-connector-sc6262 Fairview Microwave SC6262

181 available

BNC Female (Jack) Bulkhead Connector Solder Cup Terminal, Solder, Nickel Plated Brass Body, Length 0.47 In

Compare

SKU SC6262

Starting price $20.79

Estimated shipment Tomorrow

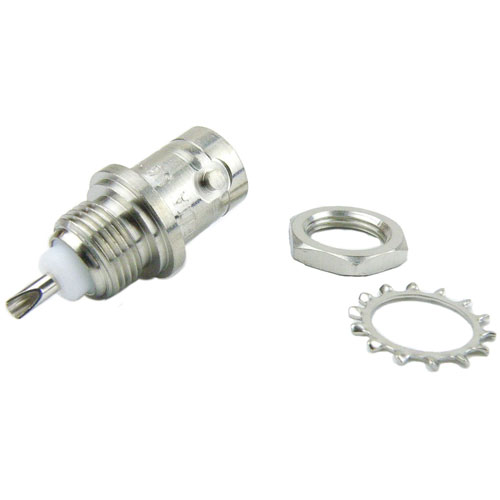

bnc-female-standard-solder-cup-terminal-connector-sc6261 Fairview Microwave SC6261

28 available

BNC Female (Jack) Bulkhead Connector Solder Cup Terminal, Solder, Nickel Plated Brass Body, Length 0.49 In

Compare

SKU SC6261

Starting price $18.39

Estimated shipment Tomorrow

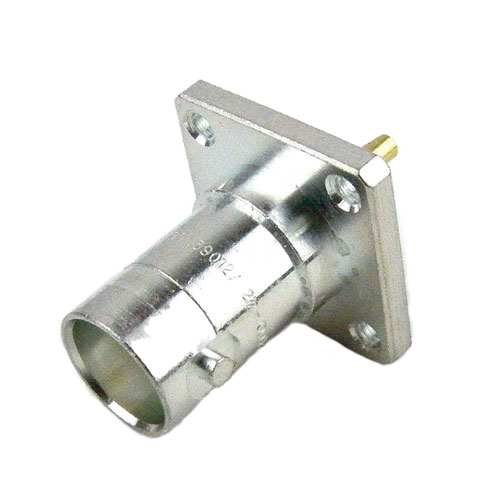

bnc-female-solder-cup-terminal-connector-m39012-22-0001 Fairview Microwave M39012/22-0001
