RF PCB Connector, SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

RF PCB Connector, SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

FMCN4174 SMB jack PCB connector has an interface type of SMB jack which is compatible with thru hole cables and a 50 Ohm impedance. Fairview Microwave's SMB jack connector uses solder as an attachm...

FMCN4174 SMB jack PCB connector has an interface type of SMB jack which is compatible with thru hole cables and a 50 Ohm impedance. Fairview Microwave's SMB jack connector uses solder as an attachment method. Our jack SMB PCB connector operates at a minimum frequency of DC and a maximum frequency of 4 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This SMB jack RF connector is stocked to be readily available for same business day shipment. The Fairview Microwave SMB jack PCB connector has a PTFE dielectric type and a VSWR of 1.3:1. Fairview Microwave's SMB PCB connector has a brass body with gold plating. Our FMCN4174 connector uses brass contact. This push-on RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Our high-quality FMCN4174 connector features a 30 µin minimum body plating specification. This SMB connector has a gold inner contact plating. Fairview Microwave’s SMB jack connector has a maximum operating voltage of 335 Vrms. This Fairview Microwave jack SMB connector will ship the same business day as purchased. Our SMB jack connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN4174 FMCN4174 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SMB

Connector Gender

Jack

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

PCB

Interface Type 1

Thru Hole

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

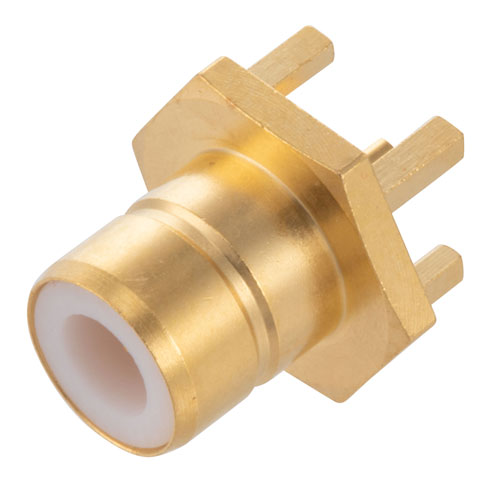

smb-jack-standard-thru-hole-pcb-connector-fmcn4110 Fairview Microwave FMCN4110

6 available

RF PCB Connector, 75 Ohm SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

Compare

SKU FMCN4110

Starting price $37.19

Estimated shipment Today

smb-jack-standard-0.042-end-launch-connector-fmcn44137 Fairview Microwave FMCN44137

5 available

RF PCB Connector, SMB Jack Connector Solder Attachment .042 inch End Launch PCB, .020 inch x .010 inch Contact

Compare

SKU FMCN44137

Starting price $33.59

Estimated shipment Today

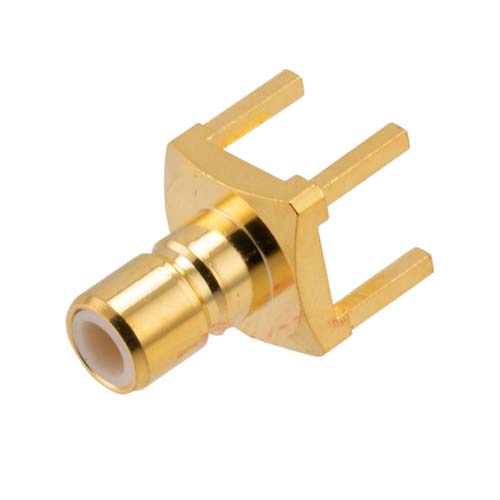

smb-jack-thru-hole-pcb-connector-fmcn5234 Fairview Microwave FMCN5234
