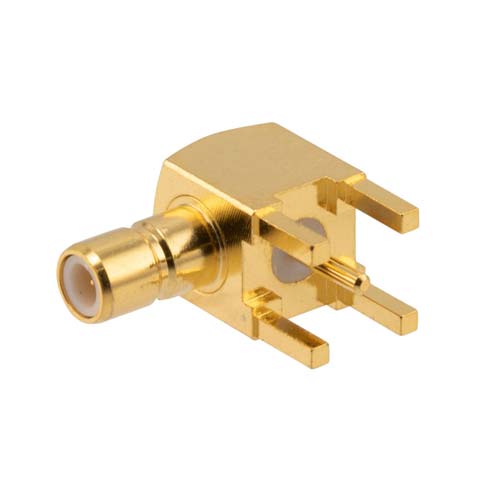

SMB Jack Commercial Grade PCB Connector Thru Hole Solder Attachment

SMB Jack Commercial Grade PCB Connector Thru Hole Solder Attachment

FMCN5234 SMB jack PCB connector has an interface type of SMB jack which is compatible with thru hole cables and has an impedance of 50 Ohms. Fairview Microwave’s SMB jack connector uses solder as an a...

FMCN5234 SMB jack PCB connector has an interface type of SMB jack which is compatible with thru hole cables and has an impedance of 50 Ohms. Fairview Microwave’s SMB jack connector uses solder as an attachment method. Our jack SMB PCB connector operates at a maximum frequency of 4 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This SMB jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave SMB jack PCB connector has a PTFE dielectric type. Fairview Microwave’s SMB PCB connector has a brass body with gold plating. Our FMCN5234 connector uses brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. This SMB connector has a gold inner contact plating. Our PCB RF connector has a length of 0.46 inches, a width of 0.26 inches, and a weight of 0.2 lbs. Our SMB jack PCB connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5234 FMCN5234 -0

QTY available 10

Price $5.60

Quantity Price

1-24$5.60

25-49$5.32

50-99$5.04

100-249$4.82

250-499$4.59

500+$4.59Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SMB

Connector Gender

Jack

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

PCB

Interface Type 1

Thru Hole

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
