SMP Male (Plug) Limited Detent PCB Connector End Launch, Solder

SMP Male (Plug) Limited Detent PCB Connector End Launch, Solder

SC5371 SMP male PCB limited detent connector from Fairview Microwave has an interface type of end launch and a 50 Ohm impedance. This SMP male connector uses shield attachment of solder attachment for...

SC5371 SMP male PCB limited detent connector from Fairview Microwave has an interface type of end launch and a 50 Ohm impedance. This SMP male connector uses shield attachment of solder attachment for the contact. Our male SMP PCB connector provides a minimum frequency of DC and a maximum frequency of 40 GHz.SMP male PCB limited detent RF connector has a ptfe dielectric type and a VSWR of 1.25:1. This Fairview Microwave SMP PCB connector has a beryllium copper body with gold plating. Our SC5371 SMP connector uses beryllium copper contact and a gold plating material. This SMP male PCB limited detent RF connector is RoHS compliant, you can find this SMP male PCB limited detent connector datasheet specifications above.Fairview Microwave male SMP connector purchases will ship the same day. Our SMP male end launch connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom SMP cable connector assemblies that will ship quickly from our location.

Expand

SKU SC5371 SC5371 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SMP

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

40 GHz

Termination Type

PCB

Interface Type 1

End Launch

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

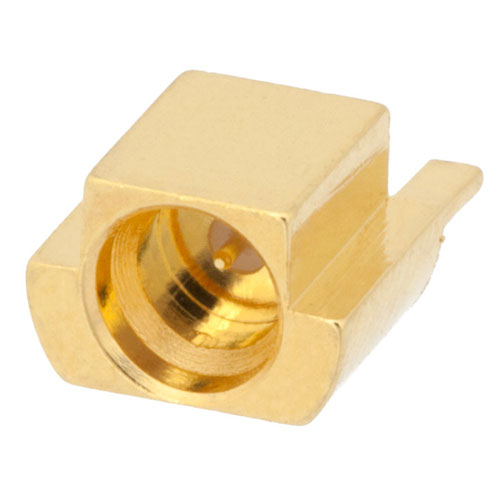

smp-male-limited-detent-end-launch-pcb-connector-sc5187 Fairview Microwave SC5187
