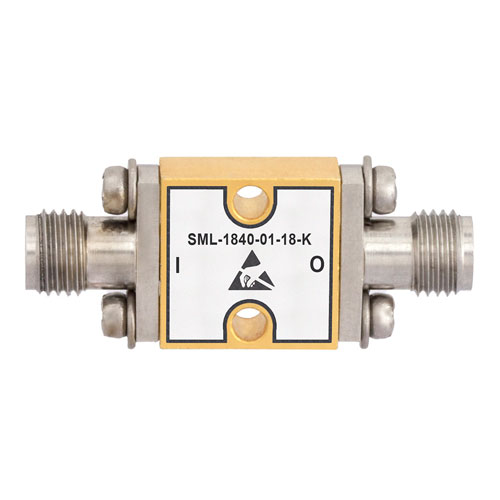

High Power Limiter, 2.92mm, 20W Peak Power, 10 ns Recovery, 18 dBm Flat Leakage, 18 GHz to 40 GHz

High Power Limiter, 2.92mm, 20W Peak Power, 10 ns Recovery, 18 dBm Flat Leakage, 18 GHz to 40 GHz

Fairview Microwave’s SML-1840-01-18-K is a high power broadband signal limiter that ships same day worldwide. High power limiter SML-1840-01-18-K has 2.92mm female to 2.92mm female type connectors wit...

Fairview Microwave’s SML-1840-01-18-K is a high power broadband signal limiter that ships same day worldwide. High power limiter SML-1840-01-18-K has 2.92mm female to 2.92mm female type connectors with a compact and rugged, thin-film construction. This 2.92mm series limiter has a maximum peak power of 20W at 1us pulse, 0.1% Duty Cycle and we keep it in-stock constantly. The SML-1840-01-18-K 2.92mm to 2.92mm limiter has a maximum recovery time of 10 ns. This industry-leading 20W high power limiter features a maximum insertion loss of 4 dB.SML-1840-01-18-K 4 dB limiter with 20W max power, has a minimum operational temperature range of -54 degrees C to a maximum of 85°C. Off-the-shelf online or by phone, we ship these high-quality 2.92mm to 2.92mm limiters with a broadband frequency of 18 GHz – 40 GHz around the globe. Our 20W high power limiter at 1us pulse, 0.1% Duty Cycle has a 10 ns recovery time and is intended for use in applications like microwave radio, VSAT, SATCOM, radar and space systems.40 GHz 20W high-reliability limiter meets US Department of Defense environmental test methods for vibration of MIL-STD-202F, METHOD 204D COND. B and a humidity of MIL-STD-202F, METHOD 103B COND. B. Fairview Microwave’s high power 10 ns RF limiter has an average input power of 1 and a military grade package design. Contact Fairview Microwave’s expert technical support for assistance with SML-1840-01-18-K high power 85°C broadband limiter. Download our 20W high power SML-1840-01-18-K PDF datasheet with specifications and CAD drawing with dimensions for details. Our knowledgeable sales team simplifies the purchasing process and ensures that your 2.92mm female to 2.92mm female power limiter will be exact to spec.Fairview Microwave was founded in 1992 and has since become reputable suppliers for 18 (GHz) – 40 (GHz) high power 4 insertion loss limiters and electronic components. Limiter SML-1840-01-18-K by Fairview Microwave has a max leakage of 18 dBm and is just one of more than 1 million RF, microwave and limiter parts we stock. This 2.92mm female to female 1W average power limiter is ready to buy and can be shipped worldwide. Order your high power 20W limiter online today; there is no MOQ (minimum order quantity) and we provide same-day shipping.

Expand

SKU SML-1840-01-18-K SML-1840-01-18-K -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector In Series

2.92mm

Connector In Gender

Female

Connector Out Series

2.92mm

Connector Out Gender

Female

Minimum Frequency

18 GHz

Maximum Frequency

40 GHz

Maximum Insertion Loss

4 dB

Design Type

High Power

Peak Power

20 Watt

Leakage (CW)

18 dBm

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

Call us

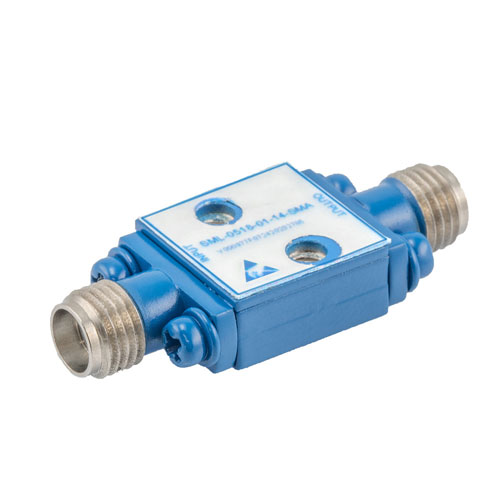

High Power Limiter, SMA, 100W Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 500 MHz to 18 GHz

Compare

SKU SML-0518-01-14-SMA

Starting price $4,790.00

Estimated shipment Call Us

5 available

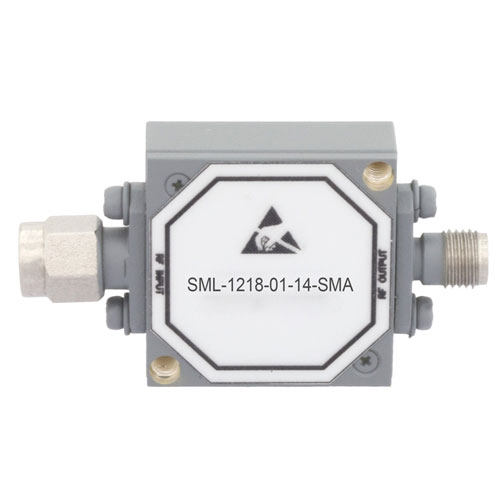

High Power Limiter, SMA, 100W Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 12 GHz to 18 GHz

Compare

SKU SML-1218-01-14-SMA

Starting price $2,256.70

Estimated shipment Today

1 available

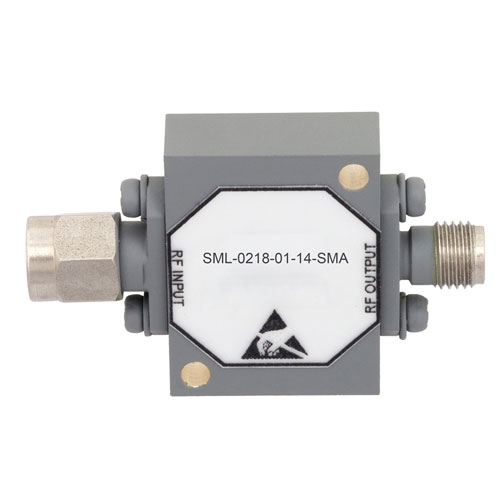

High Power Limiter, SMA, 200W Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz

Compare

SKU SML-0218-01-14-SMA

Starting price $2,278.58

Estimated shipment Today

6 available

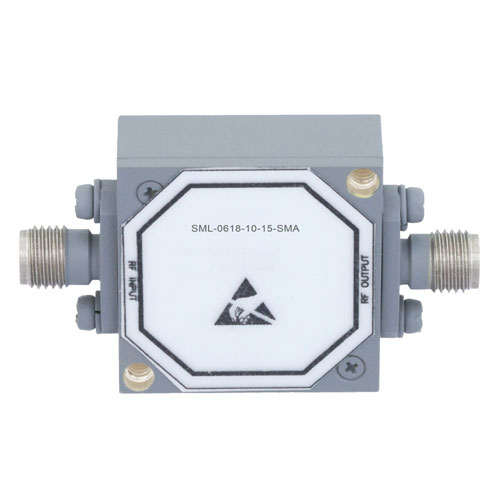

High Power Limiter, SMA, 100W Peak Power, 12 ns Recovery, 15 dBm Flat Leakage, 6 GHz to 18 GHz
