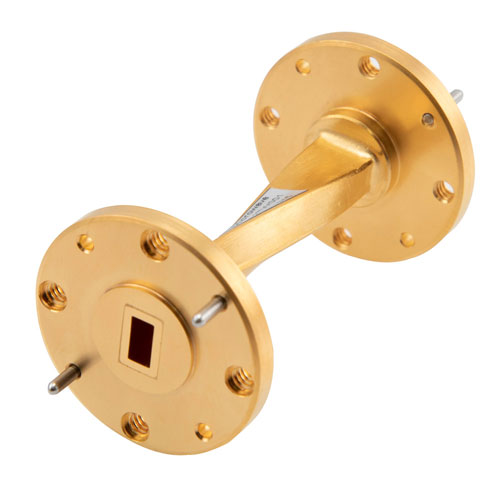

WR-22 90 Degree Waveguide Twist Using a UG-383/U Flange and a 33 GHz to 50 GHz Frequency Range

WR-22 90 Degree Waveguide Twist Using a UG-383/U Flange and a 33 GHz to 50 GHz Frequency Range

Name: WR-22 90 Degree Waveguide Twist Using a UG-383/U Flange and a 33 GHz to 50 GHz Frequency Range
Brand: Fairview Microwave, Inc.
SKU: FMW22TW001
Price: 399.0 USD
Availability: InStock

The FMW22TW001 is a 90 degree waveguide twist that is part of a family of precision manufactured twists with round flange per MIL-DTL-85. The family includes right and left hand 45 degree twists as we...

The FMW22TW001 is a 90 degree waveguide twist that is part of a family of precision manufactured twists with round flange per MIL-DTL-85. The family includes right and left hand 45 degree twists as well as 90 degree twists. These twists are offered in the Ka through W waveguide bands.

Expand

SKU FMW22TW001 FMW22TW001 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size 1

WR-22

Flange Size 1

Round Cover

Waveguide Size 2

WR-22

Flange Size 2

Round Cover

Waveguide Angle

90 Deg.

Minimum Frequency

33 GHz

Maximum Frequency

50 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
