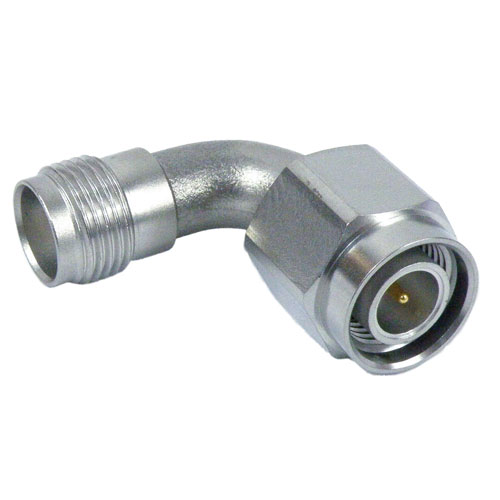

Radius RA TNC Male (plug) to TNC Female (Jack) Adapter MIL-STD-202, Passivated Stainless Steel Body, High Temp, 1.35 VSWR

Radius RA TNC Male (plug) to TNC Female (Jack) Adapter MIL-STD-202, Passivated Stainless Steel Body, High Temp, 1.35 VSWR

The standard TNC adapter SM5746 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to Threaded none TNC RF adapter comes with...

The standard TNC adapter SM5746 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to Threaded none TNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.35:1. Our standard RF adapter has a dielectric withstanding voltage of 1,500 Vrms.This none TNC to none TNC adapter is constructed with male gender on side 1 and female gender on side 2. The none none TNC male to TNC female coaxial adapter from Fairview Microwave has a radius right angle body style. This radius right angleTNCconnector adapter is a 90 degree swept elbow adapter design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM5746 adapter has a length of 0.96 inches, a width of 0.89 inches, and a weight of 0.05 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 18 GHz. This TNC male to TNC female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave SM5746 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC male to TNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU SM5746 SM5746 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Radius Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
