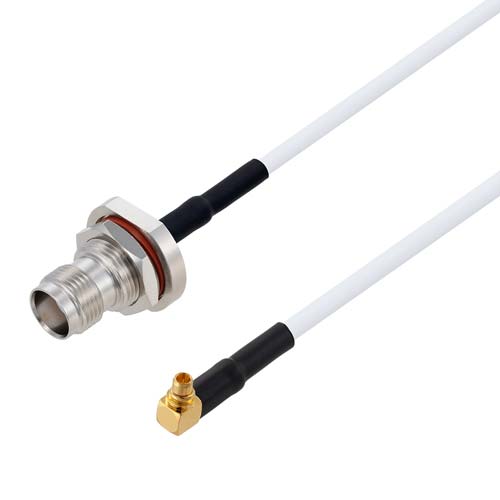

TNC Female Bulkhead to RA MMCX Plug Cable RG-188 Coax

TNC Female Bulkhead to RA MMCX Plug Cable RG-188 Coax

RF cable assembly part number FMCA9991 TNC female bulkhead to RA MMCX plug cable RG-188 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconn...

RF cable assembly part number FMCA9991 TNC female bulkhead to RA MMCX plug cable RG-188 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMCA9991 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a TNC cable connection on one end and a MMCX cable connection on the other end. Our TNC cable assembly has a female jack on end one and plug on end two. TNC cable FMCA9991 is built in a female to plug coaxial assembly design and will ship quickly after the purchase. This WH RF cable assembly has a PTFE jacket with 0.110 inches diameter. This RF cable assembly operates at a maximum frequency of 3 GHz. Our flexible cable assemblies have a PTFE jacket with 0.110 inches of jacket diameter. Fairview Microwave TNC female to MMCX plug cable assembly FMCA9991 is built with RG188 coax and it is a flexible coax design. Our cable assembly is manufactured with TNC to MMCX cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/solder attachment method and a brass body with nickel plating. This RF cable assembly with 0.5 inches diameter has copper clad steel as cable inner conducting material and PTFE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA9991 RF cable are available on our downloadable PDF datasheet. TNC femalebulkhead to MMCX right angle plug coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality TNC to MMCX cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of TNC cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC RF cable assembly as per your requirements.

Expand

SKU FMCA9991 FMCA9991 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

MMCX

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Angle 2

Right Angle

Connector Impedance 2

50

RF Cable Part Number

RG188A/U

RF Cable Type

RG-188

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
